CORTEX SM-25 6-in-1 Power Rack with Smith & Cable Machine

CORTEX SM-25 Smith Machine

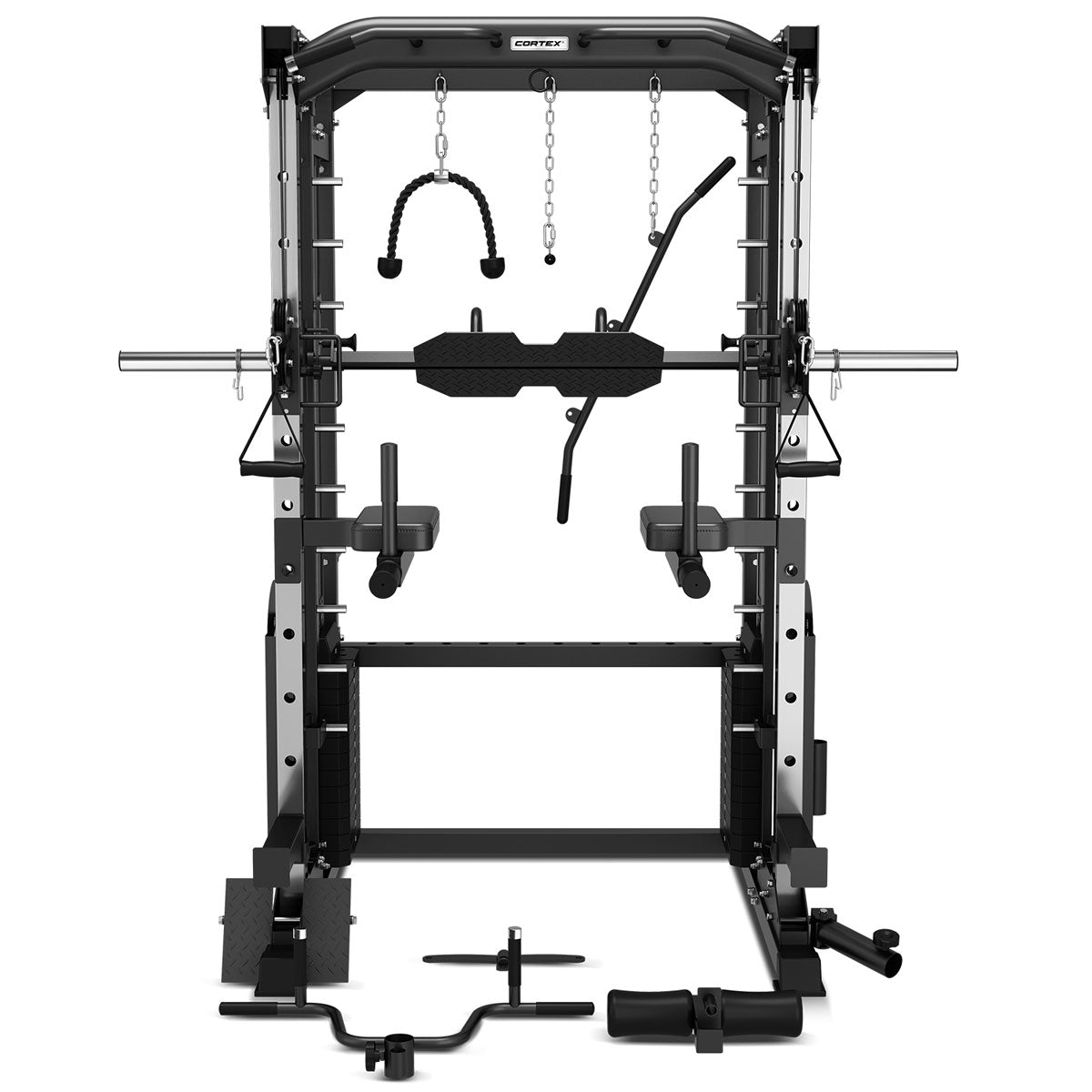

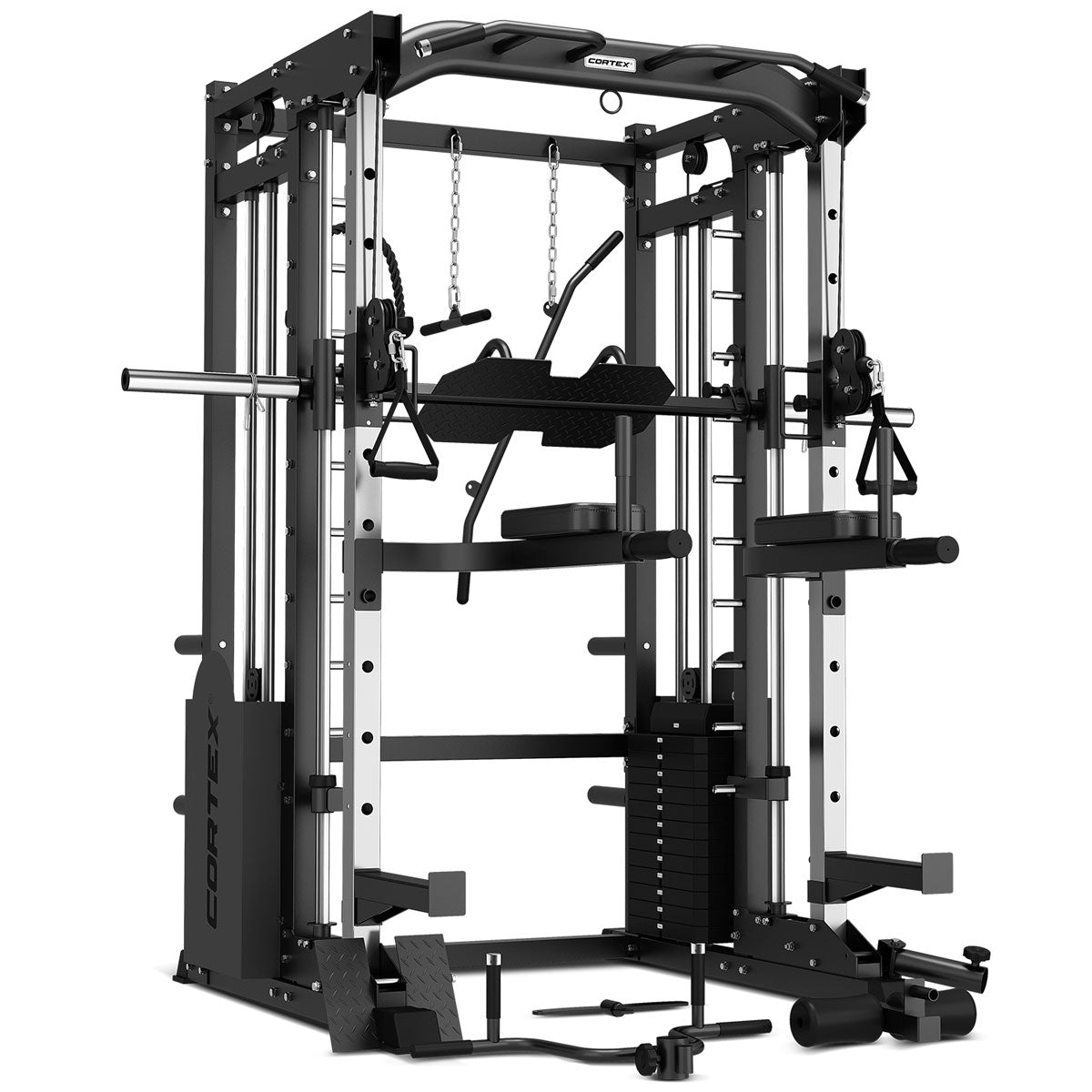

The CORTEX SM-25 6-in-1 Power Rack with Smith & Cable Machine combines multiple functions into one versatile gym station. Designed for a full-body workout, it allows for a wide range of strength exercises that target key muscle groups. With the ability to add weights and a Dual Weight Stack System featuring separate weight stacks for each pulley, the SM-25 offers a maximum weight capacity of 148kg, adjustable in 5.7kg increments. Its Smith Machine design includes fitted guide rails and multiple hooking points for safe and smooth movements, giving you the confidence to push your training limits without a spotter.



Attachments Included

Add variety into your workout by alternating from our standard attachments compatible with our SM-25. Attachments included: Landmine Handle, Straight Curl Bar, 2x Pulley handles, Lat pulldown bar, Tricep rope, Leg Roller & Dual Pulley Adaptor.

Technical Specifications

Features:

• 6-IN-1 Smith Machine, Power Rack, Barbell Landmine, Chin-up, Dips, and Weight Storage
• Cable pulley machine with a twin 74kg weight stack (12×5.7kg Plates & 1x 5.6kg plate)
• 203cm Smith Machine/Guided Smith barbell with Olympic 50mm intakes
• Cable Ratio: 2:1 (Unilateral Pulley Ratio: 0.49; Bilateral Pulley Ratio: 0.98)
• Two adjustable safety spotters with rubberised bearing surface
• Multi-grip double chin-up bar with two handle options
• Attachments: Landmine Handle, Straight Curl Bar, 2x Pulley handles, Lat pulldown bar, Tricep rope, Leg Roller & Dual Pulley Adaptor

Dimensions and Weight

Packaging Size:

• Carton 1: 213cm x 36.5cm x 14.5cm, 45.5kg
• Carton 2: 222cm x 30cm x 9cm, 44.2kg
• Carton 3: 117cm x 40cm x 13.5cm, 42kg
• Carton 4: 77cm x 54cm x 17.5cm, 41.5kg
• Carton 5-8: 38.5cm x 20cm x 27cm, 34kg each
• Occupancy Size: 203.5cm x 151.3cm x 218.6cm
• Net Weight: 296kg

Structure & Technical

• 10 height positions for safety spotter and Smith machine bar
• 350mm long safety spotter arm
• Height-adjustable dip bars (removable)
• Foldable foot plates
• Height-adjustable Smith machine spotter
• Two J-Hooks with rubber bearing surface
• Smith bar weight: 11.5kg
• Four weight storage pegs (compatible with 25/50mm plates)
• Material: powder-coated 16-gauge steel (1.5mm)

Load-bearing Capacities

• Smith machine: max. 220kg
• Safety spotter: max. 200kg
• J-Hooks: max. 180kg
• Weight disc holder: 50kg
• Pull-up bar: max. 200kg

Warranty

12 months parts replacement warranty*
